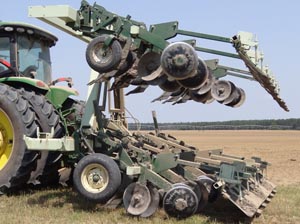

6800 Series Ripper Bedder

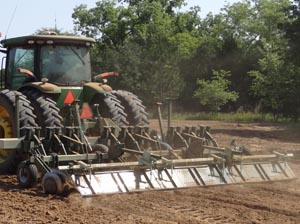

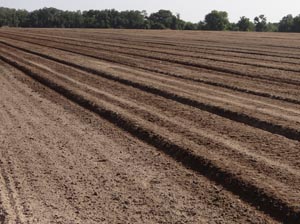

The KMC 6800 Series Ripper Bedder allows for deep tillage under the row and forming uniform peaked beds for bedded row crops in one pass. The parallel linkage connection between the front ripper tool bar and the rearward bedder tool bar, and the pneumatic gauge wheels on the bedder tool bar, allow the disc gangs the flotation needed to form beds on varying terrain that are consistent regardless of the operating depth of ripper shanks.   Requires approximately 25-40 HP per shank dpending on depth and soil conditions.

  • On row ripper shanks attached to main 7x7" tool bar
  • Two Disc Gang assemblies per row attached to rear 4x4" tool bar
  • Parallel linkages connecting front main tool bar with rear tool bar permit Disc Gang assemblies to float independent of the Ripper Shanks

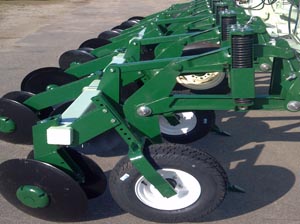

  • 8" x 10" adjustable Gauge Wheels on rear tool bar provide flotation for uniform bed heights
  • Parking stands
  • One pair adjustable Gauge Wheels are standard equipment on 6 and 8 row models.  Two pair Gauge Wheels are standard on 12 and 16 row models.  12 and 16 row mondels may require additional gauge wheels depending on soil conditions
  • Available with Reset on the Go or Toggle trip Shanks.
  • Hitches
    Hitch Type 4(36,38,40) Rigid 6(30) Rigid 6(36,38) Rigid 6(40)/8(30) Rigid 8(36,38,40) Stack fold 12(30,36,38) 12(40)/16(30) Stack fold
    CAT II-3 PT   X
    CAT II-QC X
    CATIII-3 PT X X X X X X
    CAT III-QC X X X X X X
    CAT III-NQC X X X X X X
    CAT IV-NQC     X X

    X
  • Tool Bars
    • 4x7 inch front hitch bar, 7x7 inch mail Tool Bar
    • 4x4" rear tool bar
  • Shanks: (Reset on the Go or Toggle Trip)
    • Reset on the Go with lifting the impement
    • Simple mechanical trip requires stopping and lifting the implement to reset
    • One inch width
    • High-strength, abrasion resistant steel
    • Wear shin protected
    • Reset on the Go shanks with 6000 pounds of trip force
    • Break hardpan at depths to 18"
  • Disc Gangs
    • Two disc per gang (18" and 20" on models other than 30" row models)
    • 20" single disc per gangs on 30" row models
    • Four position angle adjustment
    • Axle: 1 1/8" square
    • Bearings: 1 1/8" tri-ply seal, maintenance free. square bore
    • Prepares the soil at shanks depths of 12" to 18"

Rigid Bar Models

 Description Weight (lbs) Transport Width
68-04-36 4 Row 36" Rows   161 in
68-04-38 4 Row 38" Rows   161 in
68-04-40 4 Row 34" Rows   161 in
68-04-46 4 Row 46" Rows   200 in
68-04-48 4 Row 48" Rows   260 in
68-06-30 6 Row 30" Rows   183 in
68-06-36 6 Row 36" Rows   229 in
68-06-38 6 Row 38" Rows   229 in
68-06-40 6 Row 40" Rows   251 in
68-08-30 8 Row 30" Rows   251 in

Stack Fold Models

 Description Weight (lbs) Transport Width
68-08-36R 8 Row 36" rows   162 in
68-08-38R 8 Row 38" rows   162 in
68-08-40R 8 Row 40" rows   162 in
68-08-46R 8 Row 46" rows   230 in
68-08-48R 8 Row 48" rows   240 in
68-12-30R 12 Row 30" rows   220 in
68-12-36R 12 Row 36" rows   242 in
68-12-38R 12 Row 38" rows   242 in
68-12-40R 12 Row 40" rows   288 in
68-16-30R 16 Row 30" rows   288 in



  • Disc Scrapers
  • Balk Plows
  • Automatic Reset Ripper Shanks
  • Row Markers
  • Planter lift assist wheels
  • Bed shapers
